M3U playlists explained: what an IPTV M3U file is, how to read it, and how to fix one that will not load

By Henry Hopkins · Reviewed by IPTV Americans Editorial Team · Published September 15, 2026 · Updated September 15, 2026 · 22 min read

What is an M3U playlist?

An M3U playlist is a plain-text file listing media and where to find it. In IPTV, that means a list of channels: for each one, a name and a few details, followed by the web address the player should open to play it. There is nothing more to the format than that. You can open an M3U file in any text editor and read it.

The format is far older than IPTV. It began as a way to list music files, and it survived because it is so simple: a player reads the file from top to bottom and builds a channel list from what it finds. That same simplicity is why almost every IPTV player accepts one, and why an M3U playlist can also be the most frustrating way to load a subscription.

Three things an M3U playlist is not:

• It is not the channels. The file holds addresses, not video. Every stream it lists is still delivered by your provider's servers, and the playlist is useless the moment those servers stop answering for your account.
• It is not an IPTV service. A playlist tells a player where to look. Whether anything is there, whether it is reliable, and whether the provider has the rights to it all depend on who issued the playlist.
• It is not the programme guide. The schedule is a separate data feed. A playlist can point to one and label each channel so a guide can be matched to it, but it does not contain the listings. That separation explains a whole class of problems covered in the guide section.

Our glossary entry for M3U gives the one-line definition. This page covers the file itself: what each line does, what the IPTV-specific attributes mean, how to load one, and how to diagnose one that will not.

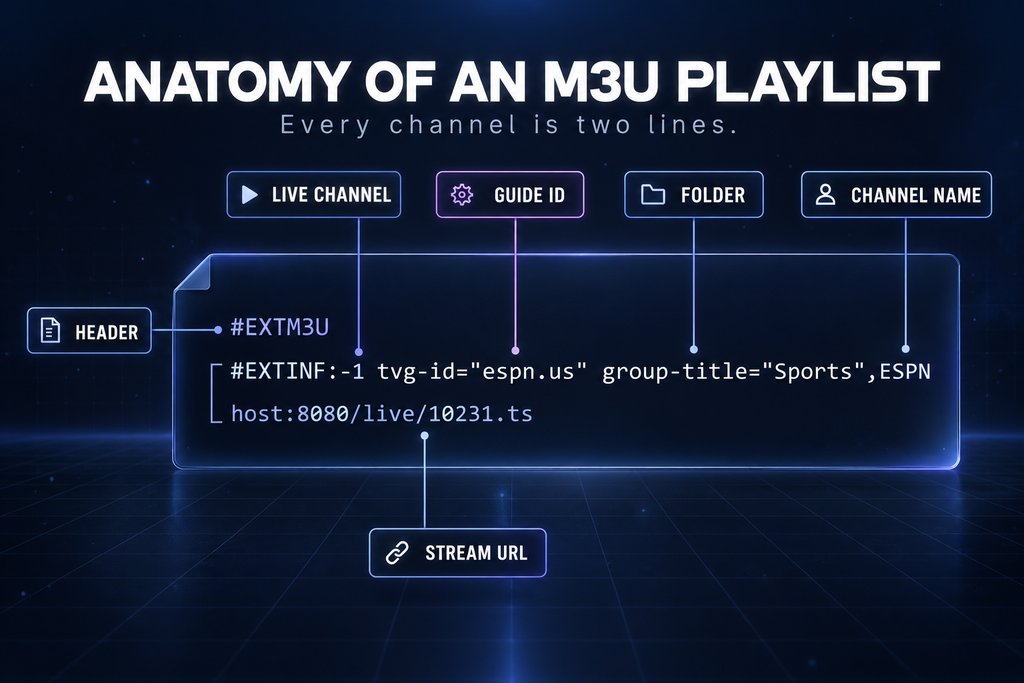

Inside an M3U file, line by line

Here is a short IPTV playlist with three channels. Everything in a real playlist from a provider follows the same pattern — just repeated thousands of times:

#EXTM3U x-tvg-url="http://your-provider-host:8080/xmltv.php?username=USER&password=PASS"
#EXTINF:-1 tvg-id="espn.us" tvg-name="ESPN" tvg-logo="http://logos.example/espn.png" group-title="US Sports",ESPN
http://your-provider-host:8080/live/USER/PASS/10231.ts
#EXTINF:-1 tvg-id="cnn.us" tvg-name="CNN" tvg-logo="http://logos.example/cnn.png" group-title="US News",CNN
http://your-provider-host:8080/live/USER/PASS/10877.ts
#EXTINF:-1 tvg-id="bbcone.uk" tvg-name="BBC One" tvg-logo="http://logos.example/bbc1.png" group-title="UK Entertainment",BBC One
http://your-provider-host:8080/live/USER/PASS/20412.ts

Channel names, IDs and addresses here are illustrative. The structure is exact.

Line 1: the #EXTM3U header

The first line must be #EXTM3U. It tells the player this is an extended M3U — one whose entries carry information beyond a bare address. A player that finds anything else on the first line, including an error message or a web page, will usually refuse the file or show an empty list. That single fact is behind many "playlist failed to load" errors, and the self-test checks for it directly.

The header line can also carry settings for the whole playlist. The most useful is x-tvg-url, which points the player at a programme guide. More on that in the attributes section.

The #EXTINF line: everything about one channel

Every channel starts with an #EXTINF line. Read it in three parts:

1. #EXTINF:-1 — the number after the colon is the item's length in seconds. For music it would be the track's duration. A live channel has no fixed length, so IPTV playlists use -1. You can ignore it; it is always there.
2. The attributes — tvg-id="…", tvg-name="…", tvg-logo="…", group-title="…" and so on. These are what turn a list of addresses into a usable channel guide, with logos, folders and programme listings.
3. The text after the last comma — the channel name as it should appear in your list. If a player shows a channel under a strange name, this is the part it is reading.

The URL line: where the stream lives

The line directly after each #EXTINF is the address of that channel's stream. On a typical IPTV service it contains the provider's server, your username, your password and a channel number, ending in a format such as .ts (an MPEG-TS stream) or .m3u8 (an HLS stream). The two lines always travel as a pair. Delete one without the other and every channel after it shifts out of step — a classic result of hand-editing a playlist.

Other lines you may see

Some playlists include extra lines starting with #, such as #EXTGRP for grouping, or #EXTVLCOPT and #KODIPROP, which pass settings to particular players. A player that does not recognise one simply skips it. Any other line starting with # is treated as a comment.

The IPTV attributes: tvg-id, group-title and the rest

The attributes inside #EXTINF are where IPTV playlists differ from the original music format, and where most of the confusion lives. The important thing to know first: there is no official standard for them. They are conventions that players and providers settled on over time. Nearly every IPTV player understands the common ones, but support for the rarer ones varies. The documentation for Kodi's IPTV Simple Client is one of the clearest public references, and the meanings below match it.

Why tvg-id matters more than the rest

If you learn one attribute, learn this one. Your player downloads the guide as a separate file, then connects each channel in the playlist to a row in the guide by comparing IDs. The tvg-id in the playlist has to match the channel ID in the guide exactly. espn.us and ESPN.us are not a match on a player that compares them strictly. When a handful of channels have no listings while the rest do, a mismatched tvg-id is almost always why. The full matching mechanism, including how to map channels by hand, is in our EPG guide's channel-matching section.

Why group-title decides whether the list is usable

A large subscription can list tens of thousands of entries. Without groups, that is one scrolling list nobody can navigate. With them, the player builds folders — US Sports, UK News, Movies — that you can open, hide or reorder. When a provider reorganises its groups, your hidden-group settings in the player can reset, because the player remembers groups by name. That is the likely reason channels you had hidden suddenly reappear.

M3U vs M3U8: what the 8 means

An M3U8 is an M3U saved with UTF-8 text encoding. The structure is identical. The 8 exists because a plain .m3u file may use whatever text encoding the computer that made it happened to use, while .m3u8 promises UTF-8. That difference matters the moment a playlist contains channel names in other languages or characters such as é, ñ or ü.

The symptom: garbled channel names

If channel names show up as é where an é should be, or as boxes and question marks, the player read the file with the wrong encoding. The channels themselves are fine. The fix is usually a player setting for playlist encoding, or asking your provider for a UTF-8 version. If you edited the file yourself, save it as UTF-8.

The confusion: an ".m3u8 link" is often not a channel list

There is a second, unrelated meaning worth separating out. Apple's HTTP Live Streaming (HLS) uses the M3U8 format for its own purposes: an HLS stream address ending in .m3u8 points to a tiny playlist of video segments for one stream, not a list of your channels. So when someone says "M3U8 link", they may mean a single HLS stream rather than a channel playlist. If you paste one into a player expecting a full channel list, you will get either one channel or an error. Our guide to how IPTV streaming works covers HLS in more depth.

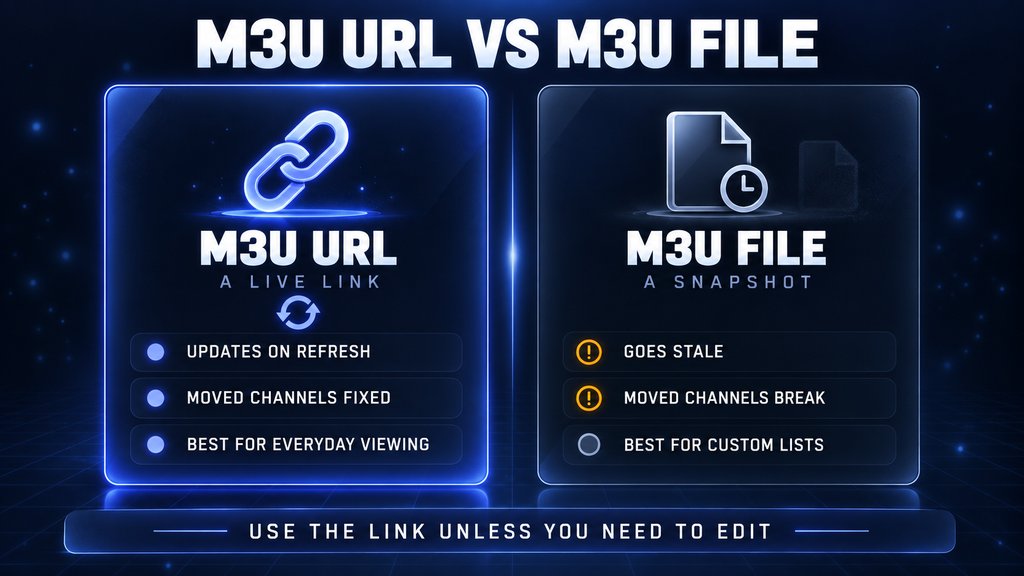

An M3U URL vs an M3U file

You can give a player an M3U playlist in two ways, and they behave very differently over time.

Use the URL unless you have a specific reason not to. A downloaded file starts going stale the day you save it: providers renumber channels, move streams and add new ones, and a file cannot follow. If channels that used to work in a saved playlist have gone quiet one by one over several weeks, that is the pattern of a stale file, not a failing service.

Where your M3U URL comes from

Your provider issues it, usually in the activation email or message alongside an Xtream Codes login. On services built on Xtream-style server software — which is most of them — the M3U link is generated from your account and follows a recognisable pattern:

http://your-provider-host:8080/get.php?username=USER&password=PASS&type=m3u_plus&output=ts

Knowing the parts lets you spot problems at a glance:

• username and password — your account credentials, in plain text inside the link. This is why the link must be kept private; see keeping your playlist private.
• type=m3u_plus — asks for the extended playlist with logos, groups and guide IDs. A plain type=m3u returns a bare list without those attributes, which is why channels can arrive with no logos and no folders.
• output=ts — the stream format used in every channel address. Many panels also accept m3u8 (sometimes written hls) for HLS streams. If channels load but will not play on a particular device, trying the other format is a quick, reversible test.

Because the same account produces both, an M3U link and an Xtream Codes login from one provider are two routes into the same subscription. Our Xtream Codes guide lists the related server addresses, including the one that serves the programme guide.

How to open an M3U playlist

Every IPTV player has an option labelled M3U, M3U URL or Playlist URL. The steps are close to identical everywhere: choose that option, paste the link, give the playlist a name, and wait for it to load. Where to find it in the most common players:

What to expect on the first load

• It can take a while. A large playlist is one big file that the player has to download and read in full before showing anything. A minute or two on a big subscription is normal, especially on a Fire TV Stick.
• The guide may be empty at first. The guide downloads separately and later. Give it a few minutes before assuming it failed.
• You will probably see far more channels than you want. Hide whole groups in the player's settings before doing anything else. It makes the list usable and reduces what a low-powered device has to hold in memory.

M3U and the TV guide

A playlist never contains the programme listings. The player gets the guide one of two ways:

1. From the playlist's header. If the #EXTM3U line includes x-tvg-url (or url-tvg), players that support it fetch the guide automatically.
2. From an EPG URL you add yourself. If it does not, look in the player's settings for EPG or TV guide and paste the guide address from your provider. On Xtream-style services it usually ends in xmltv.php with your username and password attached.

Once both files are in, the player pairs them using each channel's tvg-id. That is why the most common M3U complaint — channels play, guide is blank — is a guide problem rather than a playlist problem. Our IPTV EPG guide explains the whole pipeline, and EPG not loading is the ordered fix list.

M3U or Xtream Codes?

If your provider gives you both, use the Xtream Codes login for everyday viewing, and keep the M3U link as a fallback. The short version of the trade-off:

• M3U is one file, read in full. It works in almost any player, including general media players like VLC, and it is the only option in some apps and older boxes. It often arrives without the movie and series libraries, and the guide frequently has to be added by hand.
• Xtream Codes is a login the player uses to fetch channels, movies, series, the guide and your account status in sections. It shows your expiry date and needs nothing re-entered when the provider changes its lineup.

The full side-by-side comparison, including when M3U is genuinely the better choice, is in our Xtream Codes vs M3U section.

M3U errors and what they actually mean

Start with one question: did the channel list load at all? A playlist that loads but will not play has a completely different cause from one that will not load. The table below is ordered that way.

"Parse error" when the link looks right

This one is worth understanding, because the error message is misleading. The player asked the address for a playlist and got back something that was not one. When an account has expired, credentials are wrong or a server is having a bad moment, many servers reply with an empty response, an error code, or a short web page — and the player, seeing no #EXTM3U on the first line, calls it a parse error. The playlist format is rarely the real problem. The self-test shows you exactly what came back.

Why a huge playlist struggles on cheap devices

An M3U playlist has to be downloaded and read in one go, and every entry held in memory. On a subscription listing tens of thousands of channels and on-demand titles, that is a real load for a streaming stick. It shows up as a long first load, a sluggish guide, or the app closing itself. Hiding groups helps once the list has loaded. An Xtream Codes login helps more, because the player fetches the catalogue in pieces rather than all at once.

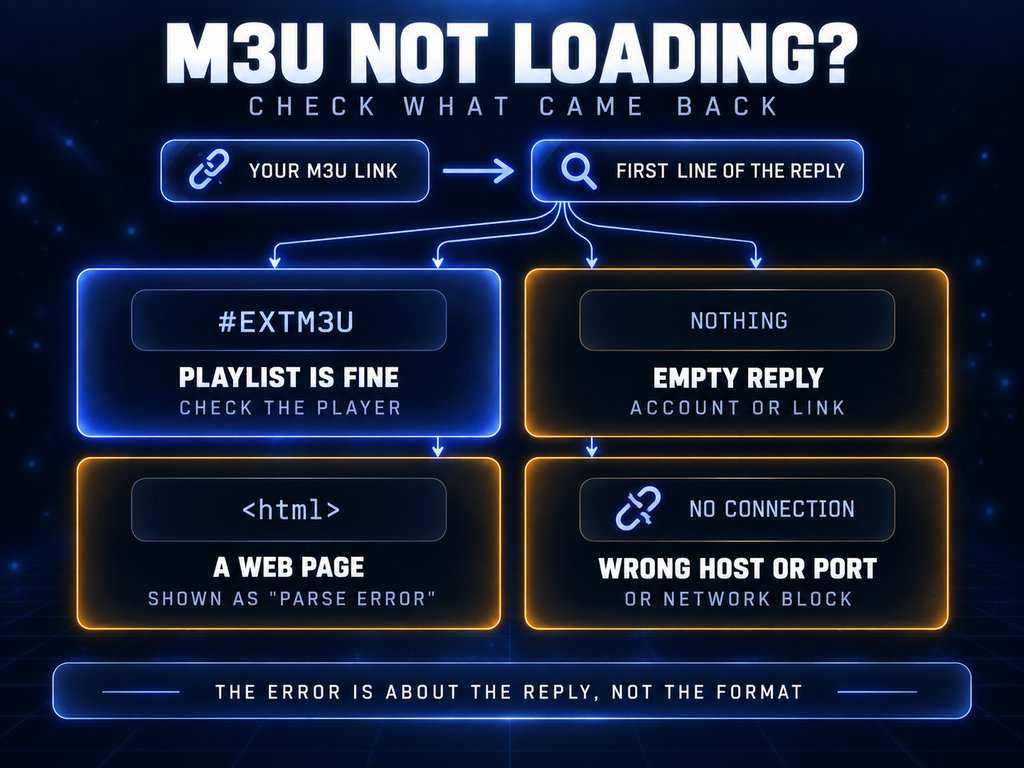

Test your M3U link yourself

You can check what your link actually returns in under a minute, which settles most "is it the player or the playlist?" questions. On a computer with a terminal, on the same network as your TV:

curl -s "http://your-provider-host:8080/get.php?username=USER&password=PASS&type=m3u_plus&output=ts" | head -5

Then read what comes back:

• The first line is #EXTM3U, followed by #EXTINF lines — the playlist is fine. The problem is in the player, the device or the network between them.
• Nothing at all — an empty reply. Most often an expired or rejected account, or a wrong link.
• HTML, such as <html> or an error message — the server sent a page instead of a playlist. That is what a player reports as a parse error.
• A connection error — the host, port or protocol in the link is wrong, or your network is blocking the connection.

To count how many channels the playlist contains, replace | head -5 with | grep -c "#EXTINF". Two cautions: the command stores your credentials in your terminal history, so do not run it on a shared or work computer, and never paste your link into an online "M3U checker" to test it — that hands your subscription to whoever runs the site.

Editing and trimming a playlist

Because an M3U is plain text, you can edit one. People do it to remove groups they never watch, reorder channels, or combine lists. It works, with some trade-offs worth knowing before you start.

• Edit a downloaded copy, never the only one. Keep the original link so you can always get a fresh file.
• Move channels in pairs. Each #EXTINF line and the URL line beneath it belong together. Separate them and every later channel shifts out of step.
• Keep #EXTM3U as the very first line. Nothing before it, not even a blank line.
• Save as UTF-8. Some players reject a file that begins with an invisible byte-order mark, so if the option exists, choose UTF-8 without BOM.
• Accept that an edited file will go stale. It no longer updates when the provider changes anything. Expect to redo the edit when channels start failing.

For most people, the player does this better. Hiding groups and building favourites in TiviMate or Smarters Pro gives you the same trimmed list while keeping the live link, so nothing goes stale. Reach for a text editor only when you need a list the player cannot build.

Keeping your M3U playlist private

An M3U link from a paid service is a password. The username and password sit in plain text inside the address, and so does every channel URL within the file. Anyone who has the link can use your subscription, which quickly runs into your connection limit and can get the account suspended.

• Crop the link out of screenshots and never post it in a forum or group when asking for help.
• Do not paste it into online checkers or converters. There is no way to know what happens to it afterwards.
• If it leaks, ask your provider for new credentials. That invalidates every copy of the old link.

What "free M3U playlist" results actually are

Searches for M3U playlists turn up a steady supply of free lists. In practice they are collections of stream addresses assembled and posted by strangers. Most entries are dead within days, there is no guide behind them, nobody maintains them, and they regularly include streams nobody had the right to republish — sometimes alongside a working paid account's link that has been leaked. They can confirm that a player installed correctly. They are not a way to watch television.

Where M3U came from

The name is short for MP3 URL. The format dates from around 1996, and is often credited to Winamp — but according to Wikipedia's account, it was originally developed by Fraunhofer, the German research institute behind the MP3 format, for its WinPlay3 player. Music players adopted it widely, and an extended form added the #EXTM3U and #EXTINF lines that IPTV playlists rely on today.

M3U has never had a formal specification. It is a de facto standard, defined by what players accept rather than by any official document. That is why IPTV attributes such as tvg-id and group-title could be added by convention, and why support for them varies from player to player.

The closest thing to a formal definition came from Apple, which built HTTP Live Streaming on the extended, UTF-8 form of the format. That use was documented in 2017 as RFC 8216 — which covers HLS, not IPTV channel playlists, and is the reason .m3u8 now means two different things.

Sources

• Wikipedia — M3U: origin, the extended M3U directives, M3U8 and the lack of a formal specification
• RFC 8216 — HTTP Live Streaming (2017)
• Kodi PVR IPTV Simple Client documentation — M3U attributes including tvg-id, group-title, catchup and x-tvg-url
